Induction motor star equivalent circuit
Conversion table for induction motors using star equivalent circuit
The conversion table was created to the best of our knowledge but there is no guaranty that it is 100% correct. Please double check critical values in the Automation Studio help before using them. If you find any errors or have any suggestions please create an issue on github.
The table uses the following notation:
|

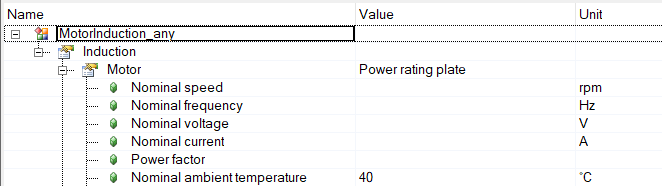

The configuration column shows the Automation Studio configuration. Each branch in the tree is presented as a list. For example the value shown in the left picture is written as:
Induction Motor Number of pole pairs |
|

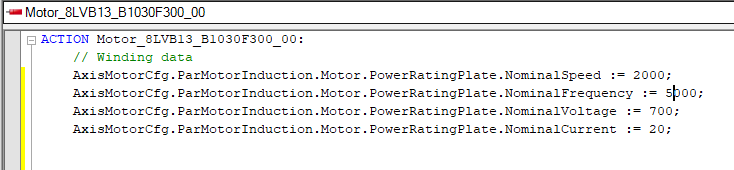

The structure column shows the same value in code. Each element of the structure is presented as a list. For example the value shown in the left picture is written as:
Motor StarEquivalentCircuit NumberOfPolePairs | Switching
| Configuration name | Structure name | Constant | Par ID | Note |
|---|---|---|---|---|
| Induction Motor Number of pole pairs |
Motor StarEquivalentCircuit NumberOfPolePairs |
MOTOR_POLEPAIRS | 47 | |
| Induction Motor Nominal speed |
Motor StarEquivalentCircuit NominalSpeed |
MOTOR_SPEED_RATED | 50 | |
| Induction Motor Maximum speed |
Motor StarEquivalentCircuit MaximumSpeed |
MOTOR_SPEED_MAX | 51 | |
| Induction Motor Nominal voltage |
Motor StarEquivalentCircuit NominalVoltage |
MOTOR_VOLTAGE_RATED | 48 | |
| Induction Motor Nominal current |
Motor StarEquivalentCircuit NominalCurrent |
MOTOR_CURR_RATED | 57 | |
| Induction Motor Stall current |
Motor StarEquivalentCircuit StallCurrent |
MOTOR_CURR_STALL | 56 | |
| Induction Motor Peak current |
Motor StarEquivalentCircuit PeakCurrent |
MOTOR_CURR_MAX | 58 | |
| Induction Motor Magnetizing current |
Motor StarEquivalentCircuit MagnetizingCurrent |
MOTOR_MAGNETIZING_CURR | 59 | |
| Induction Motor Nominal torque |
Motor StarEquivalentCircuit NominalTorque |
MOTOR_TORQ_RATED | 53 | |
| Induction Motor Stall torque |
Motor StarEquivalentCircuit StallTorque |
MOTOR_TORQ_STALL | 52 | |
| Induction Motor Peak torque |
Motor StarEquivalentCircuit PeakTorque |
MOTOR_TORQ_MAX | 54 | |
| Induction Motor Stator resistance |
Motor StarEquivalentCircuit StatorResistance |
MOTOR_STATOR_RESISTANCE | 60 | |
| Induction Motor Rotor resistance |
Motor StarEquivalentCircuit RotorResistance |
MOTOR_ROTOR_RESISTANCE | 76 | |
| Induction Motor Stator inductance |
Motor StarEquivalentCircuit StatorInductance |
MOTOR_STATOR_INDUCTANCE | 61 | AS uses mH PAR ID uses H |
| Induction Motor Rotor inductance |
Motor StarEquivalentCircuit RotorInductance |
MOTOR_ROTOR_INDUCTANCE | 77 | |
| Induction Motor Mutual inductance |
Motor StarEquivalentCircuit MutualInductance |
MOTOR_MUTUAL_INDUCTANCE | 78 | AS uses mH PAR ID uses H |
| Induction Motor Moment of inertia |
Motor StarEquivalentCircuit MomentOfInertia |
MOTOR_INERTIA | 62 | AS uses kgcm2 PAR ID uses kgm2 |
| Induction Motor Nominal ambient temperature |
Motor StarEquivalentCircuit NominalAmbientTemperature |
MOTOR_AMB_TEMP_RATED | 865 | |
| Induction Motor Voltage limitation Maximum DC bus voltage |
Motor StarEquivalentCircuit VoltageLimitation Used MaximumDCBusVoltage |
MOTOR_UDC_MAX | 1641 | |
| Induction Motor Temperature sensor Limit temperature |
Motor StarEquivalentCircuit TemperatureSensor Thermistor LimitTemperature |
MOTOR_TEMPSENS_LIM | 1216 | Thermistor |
| Induction Motor Temperature sensor Temperature sensor interface |
Motor StarEquivalentCircuit TemperatureSensor Thermistor TemperatureSensorInterface |
Thermistor | ||
| Induction Motor Temperature sensor ResistanceR0 |
Motor StarEquivalentCircuit TemperatureSensor Thermistor ResistanceR0 |
MOTOR_TEMPSENS_PAR1 | 64 | Thermistor |
| Induction Motor Temperature sensor ResistanceR7 |
Motor StarEquivalentCircuit TemperatureSensor Thermistor ResistanceR7 |
MOTOR_TEMPSENS_PAR2 | 65 | Thermistor |
| Induction Motor Temperature sensor TemperatureT0 |
Motor StarEquivalentCircuit TemperatureSensor Thermistor TemperatureT0 |
MOTOR_TEMPSENS_PAR3 | 66 | Thermistor |
| Induction Motor Temperature sensor TemperatureT1 |
Motor StarEquivalentCircuit TemperatureSensor Thermistor TemperatureT1 |
MOTOR_TEMPSENS_PAR4 | 67 | Thermistor |
| Induction Motor Temperature sensor TemperatureT2 |
Motor StarEquivalentCircuit TemperatureSensor Thermistor TemperatureT2 |
MOTOR_TEMPSENS_PAR5 | 68 | Thermistor |
| Induction Motor Temperature sensor TemperatureT3 |
Motor StarEquivalentCircuit TemperatureSensor Thermistor TemperatureT3 |
MOTOR_TEMPSENS_PAR6 | 69 | Thermistor |
| Induction Motor Temperature sensor TemperatureT4 |
Motor StarEquivalentCircuit TemperatureSensor Thermistor TemperatureT4 |
MOTOR_TEMPSENS_PAR7 | 70 | Thermistor |
| Induction Motor Temperature sensor TemperatureT5 |
Motor StarEquivalentCircuit TemperatureSensor Thermistor TemperatureT5 |
MOTOR_TEMPSENS_PAR8 | 71 | Thermistor |
| Induction Motor Temperature sensor TemperatureT6 |
Motor StarEquivalentCircuit TemperatureSensor Thermistor TemperatureT6 |
MOTOR_TEMPSENS_PAR9 | 72 | Thermistor |
| Induction Motor Temperature sensor TemperatureT7 |
Motor StarEquivalentCircuit TemperatureSensor Thermistor TemperatureT7 |
MOTOR_TEMPSENS_PAR10 | 73 | Thermistor |
| Induction Motor Temperature sensor Temperature sensor interface |
Motor StarEquivalentCircuit TemperatureSensor Thermistor TemperatureSensorInterface |
Switching PTC thermistor |
||
| Induction Motor Temperature sensor Nominal response resistance |
Motor StarEquivalentCircuit TemperatureSensor SwitchingPTCThermistor NominalResponseTemperature |
MOTOR_TEMPSENS_PAR1 | 64 | Switching PTC thermistor |
| Induction Motor Temperature sensor Minimum resistance |
Motor StarEquivalentCircuit TemperatureSensor SwitchingPTCThermistor MinimumResistance |
MOTOR_TEMPSENS_PAR2 | 65 | Switching PTC thermistor |
| Induction Motor Temperature sensor TemperaNominal response temperature |
Motor StarEquivalentCircuit TemperatureSensor SwitchingPTCThermistor NominalResponseTemperature |
MOTOR_TEMPSENS_PAR3 | 66 | Switching PTC thermistor |
| Induction Motor Temperature sensor Temperature sensor interface |
Motor StarEquivalentCircuit TemperatureSensor Thermoswitches TemperatureSensorInterface |
Thermoswitches | ||
| Induction Motor Temperature sensor Nominal response resistance |
Motor StarEquivalentCircuit TemperatureSensor Thermoswitches NominalResponseTemperature |
MOTOR_TEMPSENS_PAR1 | 64 | Thermoswitches |
| Induction Motor Temperature sensor Minimum resistance |
Motor StarEquivalentCircuit TemperatureSensor Thermoswitches SwitchingStateOnOvertemperature |
MOTOR_TEMPSENS_PAR10 | 73 | Thermoswitches |
| Induction Motor Temperature model Current-based Limit temperature |
Motor StarEquivalentCircuit TemperatureModel CurrentBased LimitTemperature |
MOTOR_WIND_TEMP_MAX | 74 | Current-based |
| Induction Motor Temperature model |
Motor StarEquivalentCircuit TemperatureModel |
TEMP_MOTOR_MODEL_MODE | 373 | Current-based Current- and speed-based |
| Induction Motor Temperature model Current-based Winding cross section |
Motor StarEquivalentCircuit TemperatureModel CurrentBased WindingCrossSection |
MOTOR_WIND_CROSS_SECT | 59 | Current-based |
| Induction Motor Temperature model Current-based Thermal tripping time |
Motor StarEquivalentCircuit TemperatureModel CurrentBased ThermalTrippingTime |
PIDENT_THERM_TRIP_TIME | 1283 | Current-based |
| Induction Motor Temperature model Current-based Thermal time constant |
Motor StarEquivalentCircuit TemperatureModel CurrentBased ThermalTimeConstant |
MOTOR_TAU_THERM | 849 | Current-based |
| Induction Motor Temperature model Current- and speed-based Limit temperature |
Motor StarEquivalentCircuit TemperatureModel CurrentAndSpeedBased LimitTemperature |
MOTOR_WIND_TEMP_MAX | 74 | Current- and speed-based |
| Induction Motor Temperature model Current- and speed-based Calculation method Winding cross section |
Motor StarEquivalentCircuit TemperatureModel CurrentAndSpeedBased CalculationMethod SecondOrderThermalNetwork WindingCrossSection |
MOTOR_WIND_CROSS_SECT | 74 | Current- and speed-based Second-order thermal network |
| Induction Motor Temperature model Current- and speed-based Calculation method Thermal tripping time |
Motor StarEquivalentCircuit TemperatureModel CurrentAndSpeedBased CalculationMethod SecondOrderThermalNetwork CalculationMethod SecondOrderThermalNetwork ThermalTrippingTime |
PIDENT_THERM_TRIP_TIME | 1283 | Current- and speed-based Second-order thermal network |
| Induction Motor Temperature model Current- and speed-based Calculation method Thermal time constant |
Motor StarEquivalentCircuit TemperatureModel CurrentAndSpeedBased CalculationMethod SecondOrderThermalNetwork ThermalTimeConstant |
MOTOR_TAU_THERM | 849 | Current- and speed-based Second-order thermal network |
| Induction Motor Temperature model Current- and speed-based Calculation method Thermal resistance 1 |
Motor StarEquivalentCircuit TemperatureModel CurrentAndSpeedBased CalculationMethod FourthOrderThermalNetwork ThermalResistance1 |
MOTOR_TEMPMODEL_RES1 | 1211 | Current- and speed-based Fourth-order thermal network |
| Induction Motor Temperature model Current- and speed-based Calculation method Thermal capacity 1 |
Motor StarEquivalentCircuit TemperatureModel CurrentAndSpeedBased CalculationMethod FourthOrderThermalNetwork ThermalCapacity1 |
MOTOR_TEMPMODEL_CAP1 | 1212 | Current- and speed-based Fourth-order thermal network |
| Induction Motor Temperature model Current- and speed-based Calculation method Thermal resistance 2 |
Motor StarEquivalentCircuit TemperatureModel CurrentAndSpeedBased CalculationMethod FourthOrderThermalNetwork ThermalResistance2 |
MOTOR_TEMPMODEL_RES2 | 1213 | Current- and speed-based Fourth-order thermal network |
| Induction Motor Temperature model Current- and speed-based Calculation method Thermal capacity 2 |
Motor StarEquivalentCircuit TemperatureModel CurrentAndSpeedBased CalculationMethod FourthOrderThermalNetwork ThermalCapacity2 |
MOTOR_TEMPMODEL_CAP2 | 1214 | Current- and speed-based Fourth-order thermal network |
| Induction Motor Temperature model Current- and speed-based Calculation method Stator thermal loss 1 |
Motor StarEquivalentCircuit TemperatureModel CurrentAndSpeedBased CalculationMethod FourthOrderThermalNetwork StatorThermalLoss1 |
MOTOR_TEMPMODEL_LOSS1 | 1489 | Current- and speed-based Fourth-order thermal network |
| Induction Motor Temperature model Current- and speed-based Calculation method Stator thermal loss 2 |
Motor StarEquivalentCircuit TemperatureModel CurrentAndSpeedBased CalculationMethod FourthOrderThermalNetwork StatorThermalLoss2 |
MOTOR_TEMPMODEL_LOSS2 | 1490 | Current- and speed-based Fourth-order thermal network |
| Induction Motor Temperature model Current- and speed-based Calculation method Winding thermal loss 1 |
Motor StarEquivalentCircuit TemperatureModel CurrentAndSpeedBased CalculationMethod FourthOrderThermalNetwork WindingThermalLoss1 |
MOTOR_TEMPMODEL_LOSS1_W | 1654 | Current- and speed-based Fourth-order thermal network |
| Induction Motor Temperature model Current- and speed-based Calculation method Winding thermal loss 2 |
Motor StarEquivalentCircuit TemperatureModel CurrentAndSpeedBased CalculationMethod FourthOrderThermalNetwork WindingThermalLoss2 |
MOTOR_TEMPMODEL_LOSS2_W | 1655 | Current- and speed-based Fourth-order thermal network |
| Induction Motor Temperature model Current- and speed-based Calculation method Thermal resistance 1 |
Motor StarEquivalentCircuit TemperatureModel CurrentAndSpeedBased CalculationMethod FourthOrderWithCouplings ThermalResistance1 |
MOTOR_TEMPMODEL_RES1 | 1211 | Current- and speed-based Fourth-order thermal network with couplings |
| Induction Motor Temperature model Current- and speed-based Calculation method Thermal capacity 1 |
Motor StarEquivalentCircuit TemperatureModel CurrentAndSpeedBased CalculationMethod FourthOrderWithCouplings ThermalCapacity1 |
MOTOR_TEMPMODEL_CAP1 | 1212 | Current- and speed-based Fourth-order thermal network with couplings |
| Induction Motor Temperature model Current- and speed-based Calculation method Thermal resistance 2 |
Motor StarEquivalentCircuit TemperatureModel CurrentAndSpeedBased CalculationMethod FourthOrderWithCouplings ThermalResistance2 |
MOTOR_TEMPMODEL_RES2 | 1213 | Current- and speed-based Fourth-order thermal network with couplings |
| Induction Motor Temperature model Current- and speed-based Calculation method Thermal capacity 2 |
Motor StarEquivalentCircuit TemperatureModel CurrentAndSpeedBased CalculationMethod FourthOrderWithCouplings ThermalCapacity2 |
MOTOR_TEMPMODEL_CAP2 | 1214 | Current- and speed-based Fourth-order thermal network with couplings |
| Induction Motor Temperature model Current- and speed-based Calculation method Thermal resistance 3 |
Motor StarEquivalentCircuit TemperatureModel CurrentAndSpeedBased CalculationMethod FourthOrderWithCouplings ThermalResistance3 |
MOTOR_TEMPMODEL_RES3 | 1653 | Current- and speed-based Fourth-order thermal network with couplings |
| Induction Motor Temperature model Current- and speed-based Calculation method Stator thermal loss 1 |
Motor StarEquivalentCircuit TemperatureModel CurrentAndSpeedBased CalculationMethod FourthOrderWithCouplings StatorThermalLoss1 |
MOTOR_TEMPMODEL_LOSS1 | 1489 | Current- and speed-based Fourth-order thermal network with couplings |
| Induction Motor Temperature model Current- and speed-based Calculation method Stator thermal loss 2 |
Motor StarEquivalentCircuit TemperatureModel CurrentAndSpeedBased CalculationMethod FourthOrderWithCouplings StatorThermalLoss2 |
MOTOR_TEMPMODEL_LOSS2 | 1490 | Current- and speed-based Fourth-order thermal network with couplings |
| Induction Motor Temperature model Current- and speed-based Calculation method Winding thermal loss 1 |
Motor StarEquivalentCircuit TemperatureModel CurrentAndSpeedBased CalculationMethod FourthOrderWithCouplings<br/WindingThermalLoss1 |
MOTOR_TEMPMODEL_LOSS1_W | 1654 | Current- and speed-based Fourth-order thermal network with couplings |
| Induction Motor Temperature model Current- and speed-based Calculation method Winding thermal loss 2 |
Motor StarEquivalentCircuit TemperatureModel CurrentAndSpeedBased CalculationMethod FourthOrderWithCouplings WindingThermalLoss2 |
MOTOR_TEMPMODEL_LOSS2_W | 1655 | Current- and speed-based Fourth-order thermal network with couplings |
| Induction Motor Temperature model Current- and speed-based Calculation method Reference Temperature Temperature offset |
Motor StarEquivalentCircuit TemperatureModel CurrentAndSpeedBased CalculationMethod FourthOrderWithCouplings ReferenceTemperature EncoderTemperatureSensor TemperatureOffset |
MOTOR_TEMPMODEL_REF_OFF | 1706 | Current- and speed-based Fourth-order thermal network with couplings Reference Temperature Encoder temperature sensor |
| Induction Motor Temperature model Current- and speed-based Calculation method Reference Temperature Time constant |
Motor StarEquivalentCircuit TemperatureModel CurrentAndSpeedBased CalculationMethod FourthOrderWithCouplings ReferenceTemperature EncoderTemperatureSensor TimeConstant |
MOTOR_TEMPMODEL_REF_TAU | 1707 | Current- and speed-based Fourth-order thermal network with couplings Reference Temperature Encoder temperature sensor |
| Induction Brake Nominal current |
Brake Used NominalCurrent |
MOTOR_BRAKE_CURR_RATED | 42 | |
| Induction Brake Nominal torque |
Brake Used NominalTorque |
MOTOR_BRAKE_TORQ_RATED | 43 | |
| Induction Brake Activation delay |
Brake Used ActivationDelay |
MOTOR_BRAKE_ON_TIME | 44 | |
| Induction Brake Release delay |
Brake Used ReleaseDelay |
MOTOR_BRAKE_OFF_TIME | 45 | |
| Induction Brake Moment of inertia |
Brake Used MomentOfInertia |
MOTOR_BRAKE_INERTIA | AS uses kgcm2 PAR ID uses kgm2 |
|
| Induction Brake Control mode |
Brake Used ControlMode |
Voltage controlled | ||
| Induction Brake Control mode Release voltage |
Brake Used ControlMode VoltageControlled ReleaseVoltage |
MOTOR_BRAKE_VOLT_REL | 1504 | Voltage controlled |
| Induction Brake Control mode Hold voltage |
Brake Used ControlMode VoltageControlled HoldVoltage |
MOTOR_BRAKE_VOLT_HOLD | 1505 | Voltage controlled |
| Induction Brake Limits Maximum voltage |
Brake Used Limits Used MaximumVoltage |
MOTOR_BRAKE_VOLT_MAX | 1506 | Voltage controlled |
| Induction Encoder Proof of fatigue strength |
MOTOR_ENCOD_ATTR | 652 | ||
| Induction Encoder Moment of inertia |
Encoder Used MomentOfInertia |
MOTOR_ENCOD_INERTIA | AS uses kgcm2 PAR ID uses kgm2 |
|
| Induction Encoder Temperature sensor Limit temperature |
Encoder Used TemperatureSensor Used LimitTemperature |
MOTOR_ENCOD_TEMP_LIM | 1209 | |
| Induction Gearbox Gear ratio input |
Gearbox Used GearRatio |
Only one value in code | ||
| Induction Gearbox Gear ratio output |
Gearbox Used GearRatio |
Only one value in code | ||
| Induction Gearbox Maximum input speed |
Gearbox Used MaximumInputSpeed |
MOTORGEAR_SPEED_MAX | 1695 | |
| Induction Gearbox Nominal output torque |
Gearbox Used NominalOutputTorque |
MOTORGEAR_TORQ_NOM | 1693 | |
| Induction Gearbox Peak output torque |
Gearbox Used PeakOutputTorque |
MOTORGEAR_TORQ_MAX | 1694 | |
| Induction Gearbox Moment of inertia |
Gearbox Used MomentOfInertia |
MOTORGEAR_INERTIA | AS uses kgcm2 PAR ID uses kgm2 |
