Par ID

The par ID sample provides a simplified interface to control the ACOPOS parameter IDs. Parameter IDs can be read or written once or cyclic. In addition there is a cyclic multiplexed mode where data is accessed continuously but not every cycle. The data type is derived from variable data type. Make sure that the variable data type matches the parameter ID data type. If the variable is none standard type (ex. array or structure) then the data type mcACPAX_PARTYPE_VOID is used.

Also see Automation Studio help

  • (64f032b8-d12d-4fdf-a118-179256305dcf) for a complete list of parameter IDs.
  • (89221e8a-e9dd-427b-a12b-2b75d6f5fe83) for a description of MC_BR_ProcessParID_AcpAx
  • (b504b417-f0ed-4e98-914a-73b105a3931b) for a description of MC_BR_GetCyclicDataInfo_AcpAx

Here is the link to the repository.

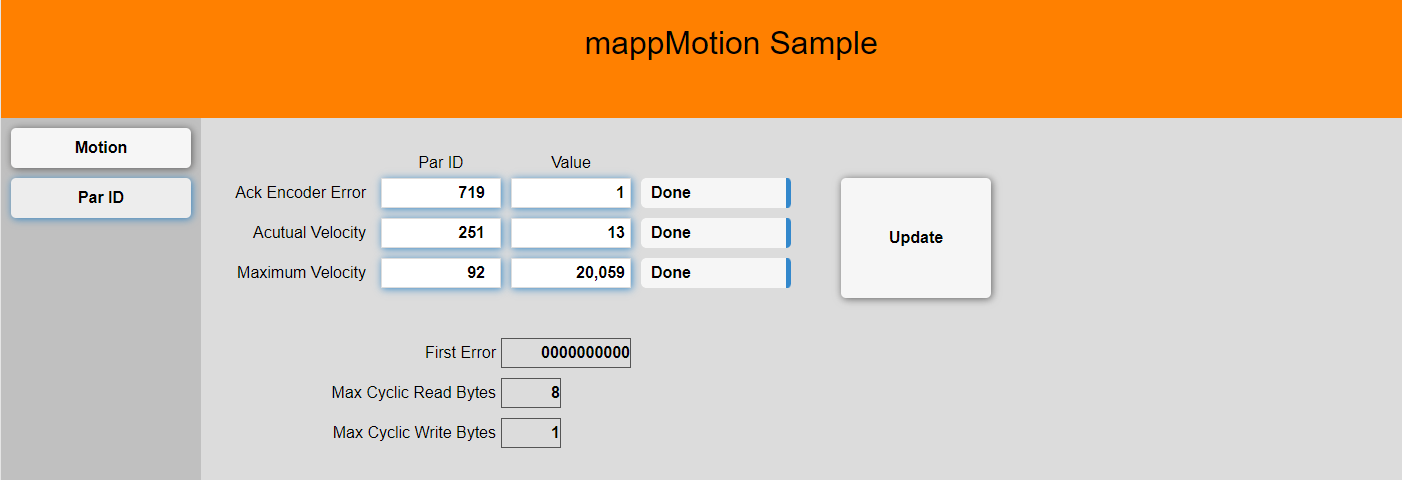

Configuration

The sample can be configured through the following constants located in the VAR-file of the package.

Parameter Function Default
AxisParNum Total number of parameter IDs 10

Interface structure

The sample uses a variable structure to communicate with the outside world that can also be used to interact with other tasks. The structure looks as follows:

Parameter Function
CmdUpdate Update par id configuration.
MpLink The axis reference establishes the connection between the function block and an axis.
ParIds Array of parameters ID configurations. See details below.
MaxReadDataBytes Maximum number of cyclic bytes used in read direction
MaxWriteDataBytes Maximum number of cyclic bytes used in read direction
ErrId Shows the first error that occurred in a parameter configuration. Data access will continue for all parameter IDs that are configured correct. The error ID must be reset with CmdResetError.

Program structure

Parameter access is configured in the sub structure ParIds

ParIds Structure Function
Execute This variable defines how the parameter ID is accessed. DONE indicates that one time access was finished. ONCE triggers as one time access. CYCLIC access transfers the data every task cycle. Keep in mind that the amount of data that can be transferred every cycle is limited. MULTI access transfers the data continuously as fast as possible but does not guaranty data access in every cycle.

- mcACPAX_PARID_DONE
- mcACPAX_PARID_GET_ONCE
- mcACPAX_PARID_SET_ONCE
- mcACPAX_PARID_GET_CYCLIC
- mcACPAX_PARID_SET_CYCLIC
- mcACPAX_PARID_GET_MULTI
- mcACPAX_PARID_SET_MULTI
Variable Variable name as string. Use 'VariableName' for global variables and 'TaskName:VariableName' for local variables. Make sure that the variable data type matches the parameter ID data type.
ParID Parameter ID number

Sample code

Here is a sample snippet that can be used as a starting point.

Program init
    // --------------------------------------------------------------------------
    // Preset ParID module
    AxisParId.MpLink := ADR(gAxis_1);                               // MpLink for axis
    AxisParId.CmdUpdate := TRUE;

    // Acknowledge encoder battery error
    mcACPAX_UDINT := 1;                                             // Par ID value: reset encoder error
    AxisParId.ParIds[1].Execute := mcACPAX_PARID_SET_ONCE;          // Execute write command once
    AxisParId.ParIds[1].ParID := 719;                               // Par ID: encoder command
    AxisParId.ParIds[1].Variable := 'Axis_1:mcACPAX_UDINT';         // Variable as string

    // Read actual speed cyclic
    mcSPEED_ACTUAL := 0;                                            // Par ID value: actual speed
    AxisParId.ParIds[2].Execute := mcACPAX_PARID_GET_CYCLIC;        // Execute write command cyclic
    AxisParId.ParIds[2].ParID := 92;                                // Par ID: actual speed
    AxisParId.ParIds[2].Variable := 'Axis_1:mcSPEED_ACTUAL';        // Variable as string

    // Write maximum speed
    mcSPEED_MAX := 0;                                               // Par ID value: actul position
    AxisParId.ParIds[3].Execute := mcACPAX_PARID_DONE;              // Dont execute command automatically
    AxisParId.ParIds[3].ParID := 111;                               // Par ID: actul position
    AxisParId.ParIds[3].Variable := 'Axis_1:mcSPEED_MAX';           // Variable as string

END_PROGRAM
Program cyclic
PROGRAM _CYCLIC
    // --------------------------------------------------------------------------
    // Call axis actions used for this drive
    ParIDAction;

END_PROGRAM

Revision

Version 8

  • Fixed cyclic communication information
  • Increased drop down box width
  • Changed demo par ids

Version 7

  • Update mappMotion to 5.24
  • Removed obsolete hardware
  • Added new outputs MaxReadDataBytes and MaxWriteDataBytes that show how many bytes are used by cyclic communication

Version 6

  • Only get variable data on update
  • Removed CmdResetError
  • Added CmdUpdate
  • Update to mappMotion 5.23

Version 5

  • Update to mappMotion 5.22.1
  • Improved error handling

Version 4

  • Removed dependency from common
  • Added cyclic par id exchange
  • Simplified interface

Version 3

  • Renamed function block

Version 2

  • Renamed action

Version 1

  • First release
