GroupBox

Description

This widget extends the standard group box. The following additional functions are available

  • Additional property "verticalAnchorTop" as boolean

Usage

Properties

verticalAnchorTopExt

This property is use to anchor top or bottom the items in a group box that already got "childPositioning" at "relative" and "alignment" at "vertical".

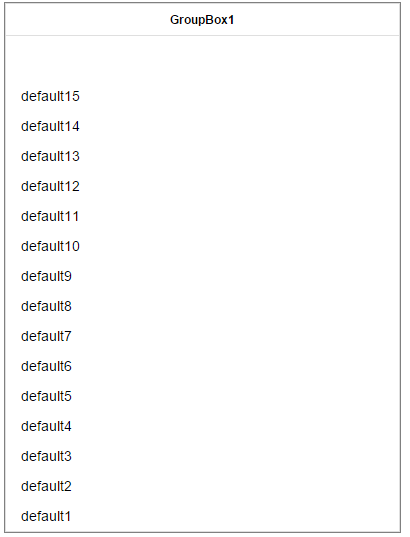

If "verticalAnchorTopExt" is "true" it's default value and there is no change at the standard group box. If it's "false", list is inverted like this:

alignItemsExt

This property is used to align items horizontally within the group box. This property works only if "childPositioning" is set to "relative" and "alignment" is set to "horizontal". Possible values are: - 'left top' - 'left center' - 'left bottom' - 'center top' - 'center center' - 'center bottom' - 'right top' - 'right center' - 'right bottom'

Limitations

Requirements

Tested with

  • Automation Studio 6.3
  • mappView 6.3

May also work with lower version: YES

Revision History

Version 3
  • Update to mapp 6.4
Version 2
  • Update widget to mappView 6.x
  • Rename property "verticalAnchorTop" to "verticalAnchorTopExt"
  • Add "alignItemsExt" style property to align items horizontal
  • Update documentation for new properties
Version 1
  • First release
