Introduction

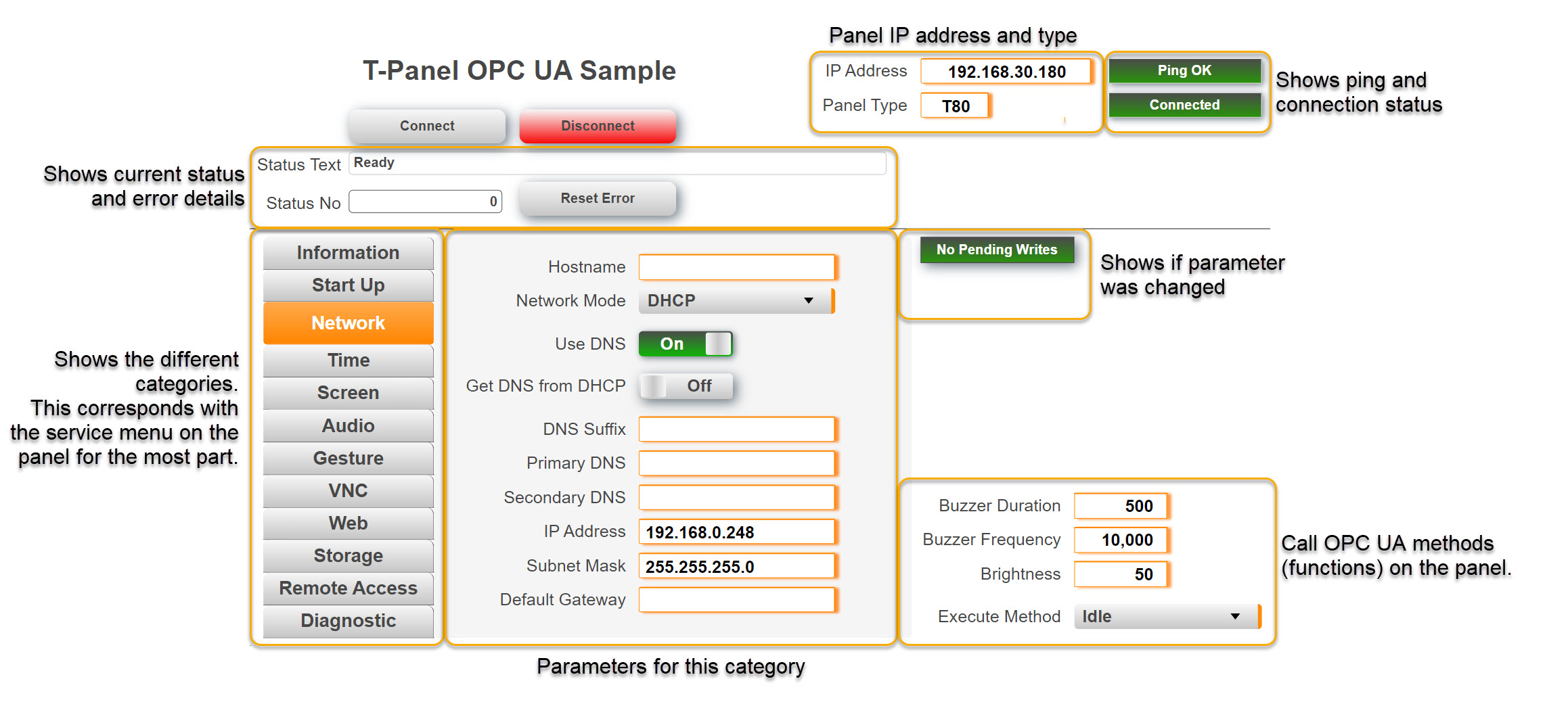

This is a sample for communication from a B&R PLC to a T-Panel over OPC UA. You can view change data as well as calling methods (functions). The sample consists of the package mappPanel and the corresponding mappView page. See the import page for details how to integrate the sample into your project.

Requirements

The sample was developed with Automation Studio 4.12 and panel firmware 1.7.0. but may also work with versions below that.

  • Automation Studio 6.5
  • Panel firmware 1.7.0

Getting started

  • Import the sample into your project. See the import page for details.
  • Open the file 'TPanel.var' from the package and change the IP address and type of the panel to match your panel.
  • Make sure that OPC UA server is activated on the panel service page.
