Compatibility

The goal is to provide a community version that almost matches the official version. However this is not possible for some components. There is no AssetInt configuration file in Automation Studio under the configuration view. The configuration is done through code. This is similar to using the official function block MpAssetIntCoreConfig.

For a general description of mappAssetInt see Automation Studio help

• (7f7c4218-cad1-406e-9c36-3e8b54e4c5c2) for a description of the offical mappAssetInt

Function blocks compared to the official version

MpAssetIntCore

For constants used in the function block see constants.

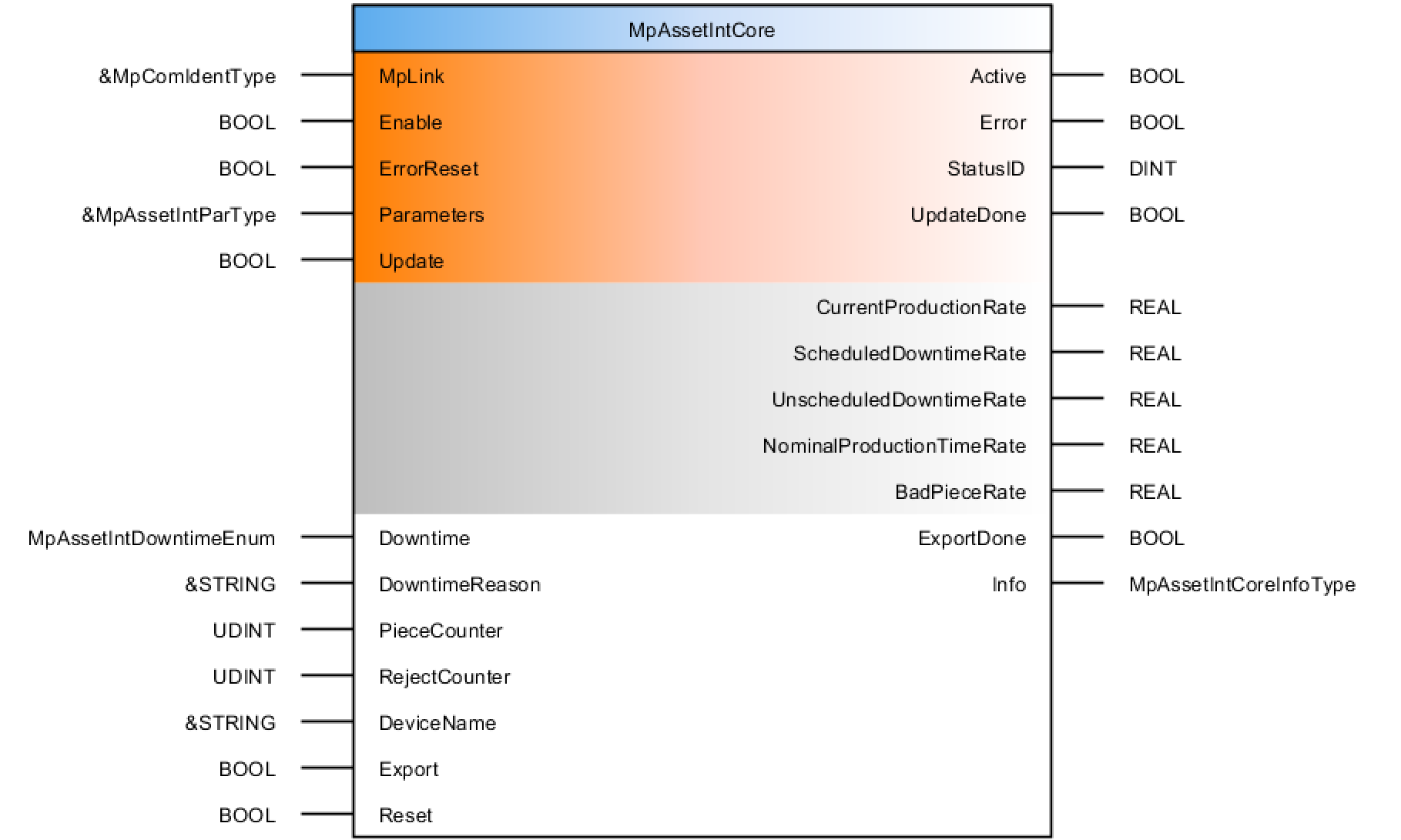

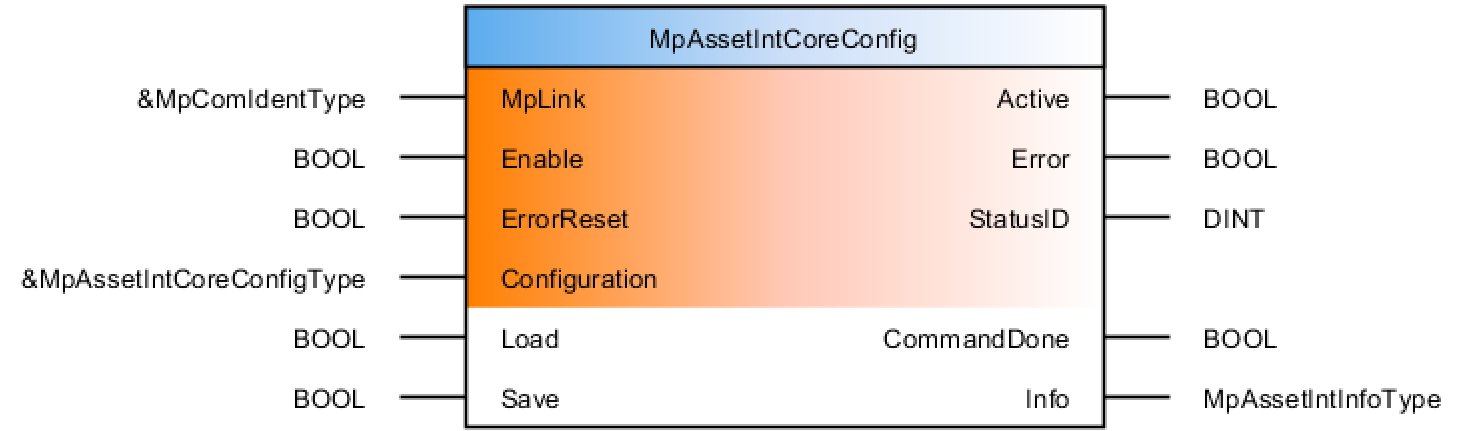

Original

New

I/O	Parameter	Data type	Description
IN	exLink	Pointer to exAssetIntLinkType	Remanent variable structure that contains short term data for cross function block communication.
IN	Enable	BOOL	The function block is active as long as this input is set.
IN	ErrorReset	BOOL	Resets function block errors.
IN	Parameters	Pointer to exAssetIntParType	Parameters of the function block.

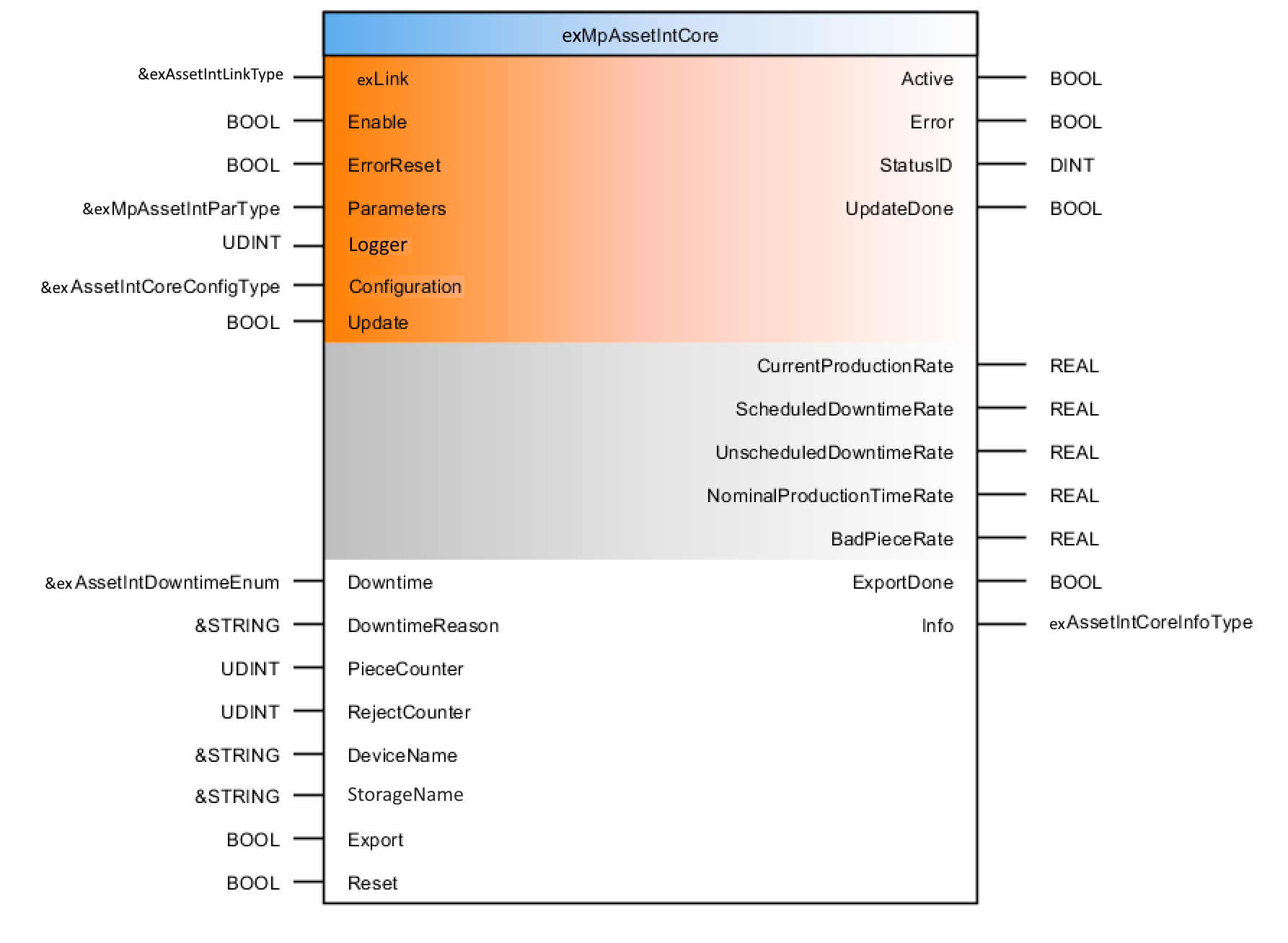

IN (NEW)	Logger	Pointer to STRING[LOG_LEN][0..LOG_NUM]	String array for logger messages.
IN (NEW)	Configuration	Pointer to exAssetIntCoreConfigType	Structure used to specify the configuration.
IN	Update	BOOL	Updates the parameters on a rising edge of the input.
IN	Downtime	exAssetIntDowntimeEnum	Indicates downtime.
IN	DowntimeReason	Pointer to STRING[50]	Reason for the downtime.
IN	PieceCounter	UDINT	Number of products manufactured.
IN	RejectCounter	UDINT	Number of rejected products.
IN	DeviceName	Pointer to STRING[50]	File device (data storage medium) where data is exported to.
IN (NEW)	StorageName	Pointer to STRING[50]	File device (data storage medium) where the files are stored.
IN	Export	BOOL	Exports statistical data regarding overall equipment effectiveness.
IN	Reset	BOOL	Resets the data in the internal buffer.
OUT	Active	BOOL	Function Block active.
OUT	Error	BOOL	Error occurred during execution.
OUT	StatusID	DINT	Status information.
OUT	UpdateDone	BOOL	Parameter update completed.
OUT	CurrentProductionRate	REAL	Current production rate.
OUT	ScheduledDowntimeRate	REAL	Scheduled downtime rate.
OUT	UnscheduledDowntimeRate	REAL	Unscheduled downtime rate.
OUT	NominalProductionTimeRate	REAL	Production time rate at machine's nominal speed.
OUT	BadPieceRate	REAL	Rate of bad products.
OUT	ExportDone	BOOL	Export successfully executed by function block.
OUT	Info	exAssetIntCoreInfoType	Additional function block information.

MpAssetIntCoreConfig

For constants used in the function block see constants.

Original

New

I/O	Parameter	Data type	Description
IN	exLink	Pointer to exAssetIntLinkType	Remanent variable structure that contains short term data for cross function block communication.
configuration).
IN	Enable	BOOL	The function block is active as long as this input is set.
IN	ErrorReset	BOOL	Resets function block errors.

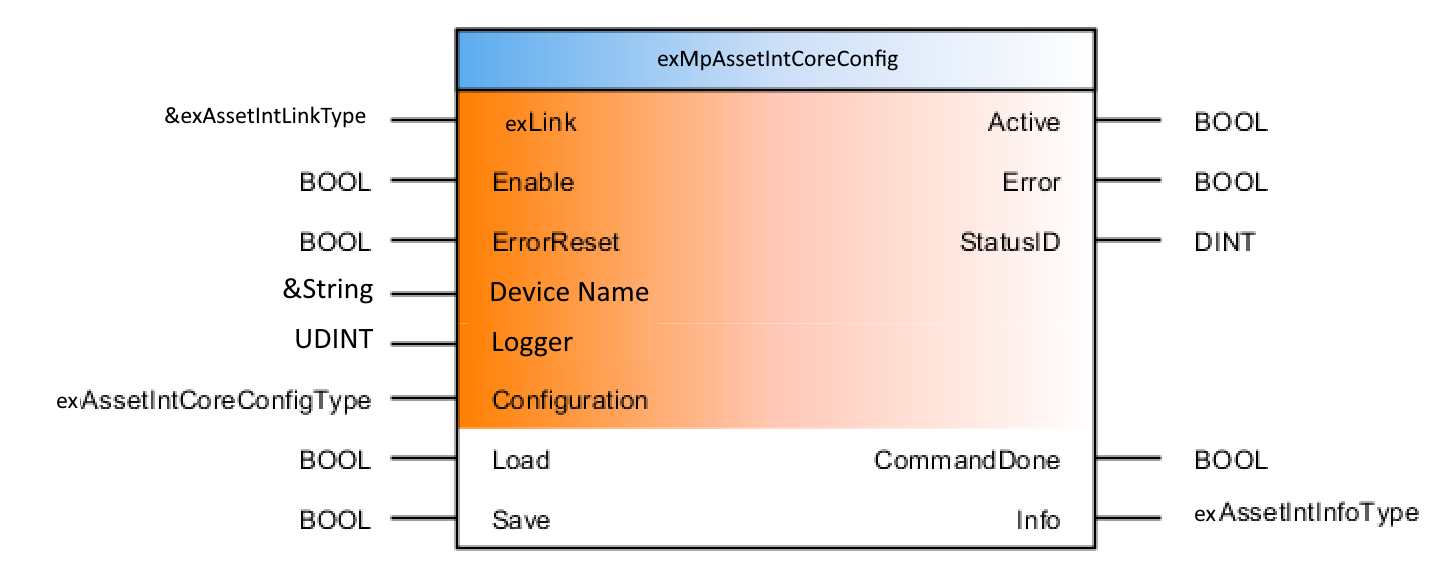

IN (NEW)	Device Name	Pointer to STRING[50]	File device (data storage medium) where the files are stored.
IN (NEW)	Logger	Pointer to STRING[LOG_LEN][0..LOG_NUM]	String array for logger messages.
IN	Configuration	Pointer to exAssetIntCoreConfigType	Structure used to specify the configuration.
IN	Load	BOOL	Loads the configuration of the component.
IN	Save	BOOL	Saves the configuration of the component.
IN	Active	BOOL	Function block active.
OUT	Error	BOOL	Error occurred during execution.
OUT	StatusID	DINT	Status information.
OUT	CommandDone	BOOL	Execution successful. Function block is finished.
OUT	Info	Pointer to exAssetIntInfoType	Additional function block information.
