🔧 Required Modifications
The Framework by default provides a solid foundation, but in order to integrate it fully into your application, a few modifications must be made.
The following list of modifications is required to get the Framework into a functional state within the application.
🚨 IMPORTANT:
The steps on this page must be executed in order to get the Framework into a functional state.
1. Transfer the Report package to the file device
The UserPartition\Report package in the Logical View must be transferred to the mappReportFiles file device (which by default is USER_PATH:\Report).

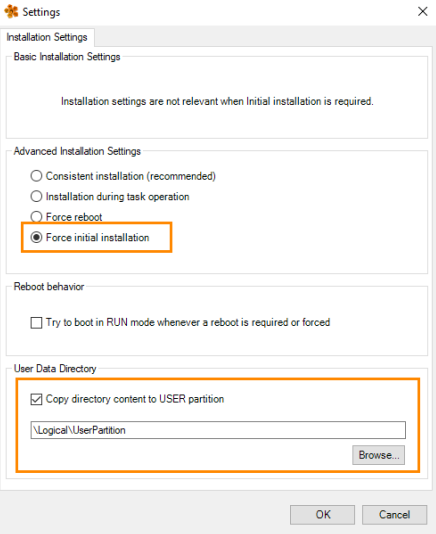

For example, this can be done via an initial installation.
2. Update report configurations with application data
Update the provided report configurations with meaningful data from the application.
By default, the reports display sample data.
The screenshot at the bottom of this page shows the general connection between process variables, the report configuration, and the output report.
3. Change default user passwords
Change the passwords for the Admin, Operator, and Service_Tech users.
This is done in the User.user file in the Configuration View
(AccessAndSecurity → UserRoleSystem → User.user).
If users with the same names already existed in the project prior to importing the Framework, those users will remain unchanged and the passwords do not need to be updated.
4. Integrate the mapp View front end (if imported)
If you imported the mapp View front end with the Framework:
a. Assign the mapp View content (content ID = Report_content) to an area on a page within your visualization.
b. The ability to delete a report on the mapp View HMI is restricted to the Administrators or Service role. Therefore, add a way to log in on the HMI (for example, by importing the mapp UserX framework).
5. Integrate the HMI without mapp View
If you did not import the mapp View front end with the Framework, connect the HmiReport structure elements to your visualization accordingly (see general information for more details).
