📄Rename AppAxis_1

Rename AppAxis_1

Here are the steps to rename the provided AppAxis_1 to something more specific to the application:

  1. Choose a name that is 10 characters or less.

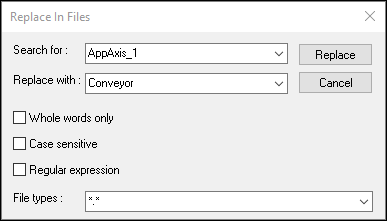

  2. Do a replace-in-files (Edit→ Find and Replace → Replace in Files) to replace all instances of AppAxis_1 with your new name. Make sure the box for "Whole words only" is NOT checked, and the file types filter is set to ".".
    pic21
  3. Manually rename the following files/packages in the Logical View → MachineControl package to your new name:
    1. AppAxis_1 package
    2. AppAxis_1 task
    3. AppAxis_1_Info.tmx
    4. AppAxis_1_Alarms.tmx
  4. In the Configuration View → Connectivity → OpcUA, open up Axis.uad in a text editor. On line 36, replace AppAxis_1 with your new name.
  5. In the Configuration View → TextSystem, open up TC.textconfig in a text editor. Replace all instances of AppAxis_1 with your new name (4 instances total).
