📄Inhibit Alarms

Inhibiting Monitoring Alarms

Decide whether each monitoring alarm should be inhibited at any point.

If so, proceed as follows:

1. Assign an Inhibit PV to the alarm within the Alarm List of the AlarmXCfg.mpalarmxcore configuration file.

   1. This is an advanced parameter, so remember to click the advanced settings icon.

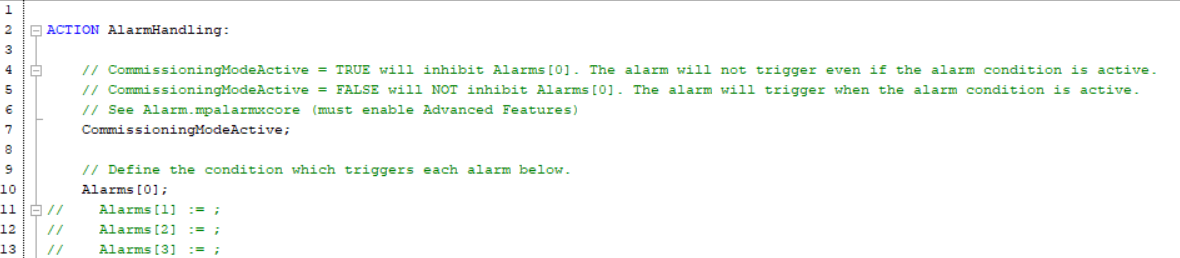

2. In the AlarmHandling.st action, write an IF statement to set the Inhibit PV according to a specific condition.

   1. It is common to use the same Inhibit PV to inhibit multiple alarms.
   2. For example, a maintenance mode bit set to True can simultaneously inhibit alarms that should not be monitored during machine maintenance.

An example of using the Inhibit PV is built into Alarm0.The condition for setting CommissioningModeActive to True is not yet defined in AlarmHandling.st and must be implemented based on the application logic.
